What this is
Options:
Traditional twin tank or cabinet style
Round or square brine tanks in black, blue or vanilla
Pressure tanks in black, blue or natural
Tank jackets with black caps in chrome, grey, blue or vanilla
PW89 Series Controlled Systems Engineered from 0.75 to 3.0 cu ft
Compact 0.75 and 1.0 cu ft cabinet

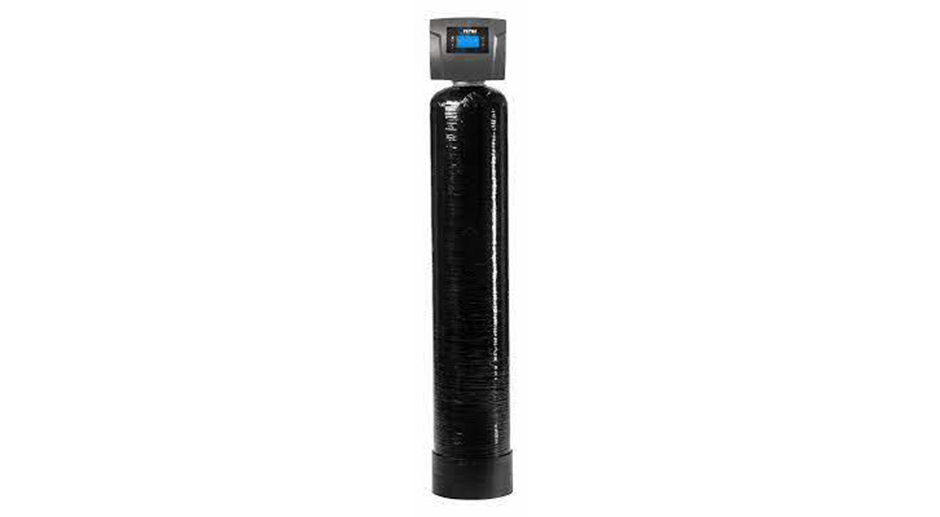

Traditional Twin Tank or Cabinet Models
NSF Certified control valves with proven piston, seal and spacer technology
NSF Certified pressure tank
Aquafine WQA Gold Seal cation resin
Round or square brine tanks with plastic salt grids and brine safety valve
Includes pre-installed bypass plus 1 straight quick connect NPT adaptors
Good to know
| Model | System Capacity (Grains) | Flow Rate (USGPM) | Regeneration Water Usage (Gallons) | Mineral Tank Size | Resin (Cu. Ft.) | Brine Tank / Cabinet Size (Inches) | Salt Capacity (Lbs) | Ship Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|
| PW89UF-75 | @10 lbs/cu ft: 22,500 @6 lbs/cu ft: 18,750 @3 lbs/cu ft: 11,250 |
Service: 8.0 Backwash: 1.5 |
Clean Water: 34.0 Problem Water: 49.6 |
8 x 44 | 0.75 | BTS 15.0×34.7/BTR 18.1×34.7 | BTS 230 /BTR 270 | 93 |
| PW89UF-100 | @10 lbs/cu ft: 30,000 @6 lbs/cu ft: 25,000 @3 lbs/cu ft: 15,000 |
Service: 10.0 Backwash: 2.0 |
Clean Water: 43.4 Problem Water: 64.3 |
9 x 48 | 1.00 | BTS 15.0×34.7/BTR 18.1×34.7 | BTS 230 /BTR 270 | 110 |
| PW89UF-150 | @10 lbs/cu ft: 45,000 @6 lbs/cu ft: 37,500 @3 lbs/cu ft: 22,500 |
Service: 12.0 Backwash: 2.4 |
Clean Water: 62.7 Problem Water: 90.3 |
10 x 54 | 1.50 | BTS 15.0×34.7/BTR 18.1×34.7 | BTS 230 /BTR 270 | 141 |
| PW89UF-200 | @10 lbs/cu ft: 60,000 @6 lbs/cu ft: 50,000 @3 lbs/cu ft: 30,000 |
Service: 15.0 Backwash: 3.5 |
Clean Water: 87.1 Problem Water: 124.6 |
12 x 52 | 2.00 | 20.3 x 37.4 | 385 | 158 |
| PW89UF-250 | @10 lbs/cu ft: 75,000 @6 lbs/cu ft: 62,500 @3 lbs/cu ft: 37,500 |
Service: 15.0 Backwash: 4.0 |
Clean Water: 108.9 Problem Water: 155.8 |
13 x 54 | 2.50 | 20.3 x 37.4 | 385 | 198 |
| PW89UF-300 | @10 lbs/cu ft: 90,000 @6 lbs/cu ft: 75,000 @3 lbs/cu ft: 45,000 |
Service: 15.0 Backwash: 5.0 |
Clean Water: 139.2 Problem Water: 196.2 |
14 x 65 | 3.00 | 23.0 x 40.5 | 550 | 244 |
| PW89UF-75C | @10 lbs/cu ft: 22,500 @6 lbs/cu ft: 18,750 @3 lbs/cu ft: 11,250 |
Service: 8.0 Backwash: 2.0 |
Clean Water: 40.5 Problem Water: 56.1 |
9 x 35 | 0.75 | 13.8 x 23.6 x 43.3 | 225 | 93 |
| PW89UF-100C | @10 lbs/cu ft: 30,000 @6 lbs/cu ft: 25,000 @3 lbs/cu ft: 15,000 |
Service: 10.0 Backwash: 2.4 |
Clean Water: 48.6 Problem Water: 69.5 |
10 x 35 | 1.00 | 13.8 x 23.6 x 43.3 | 225 | 110 |
